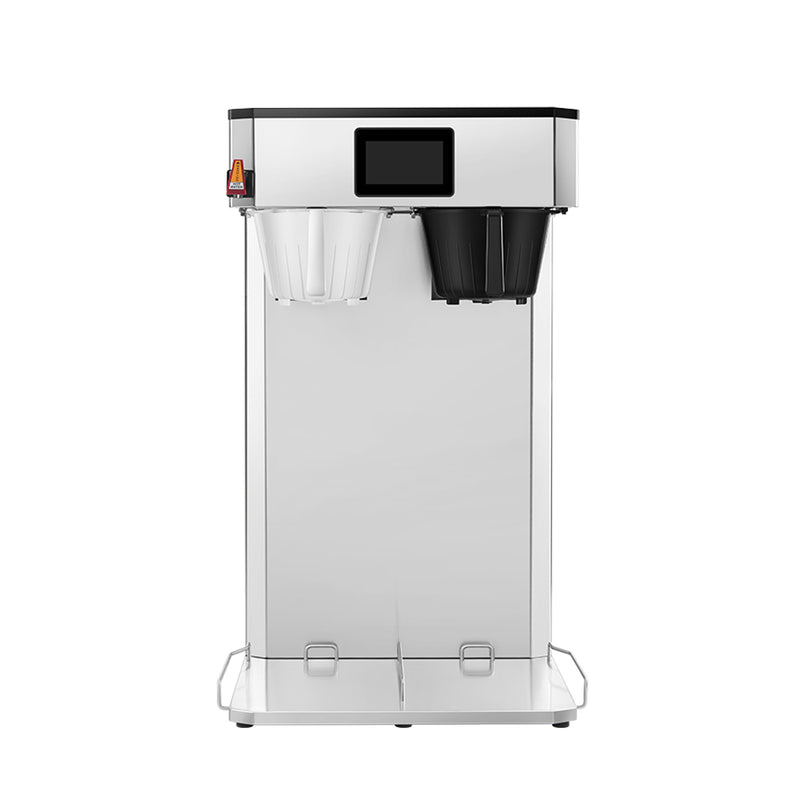

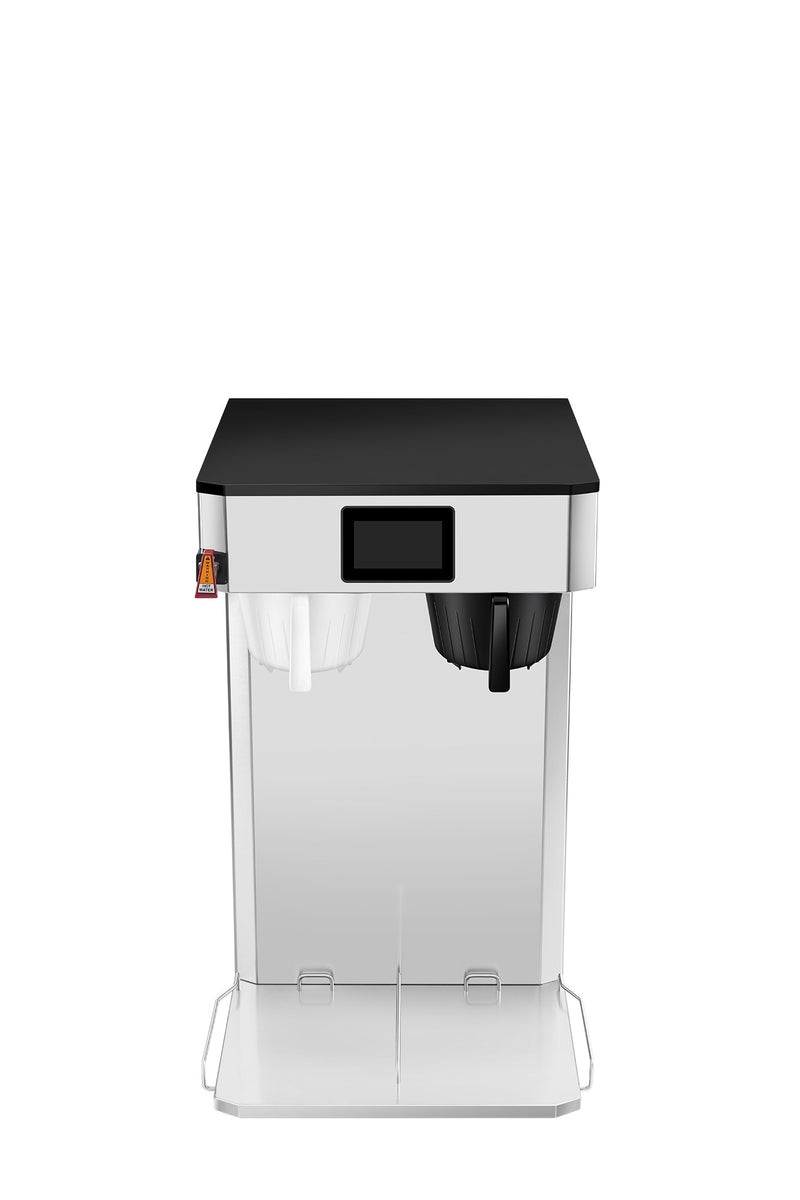

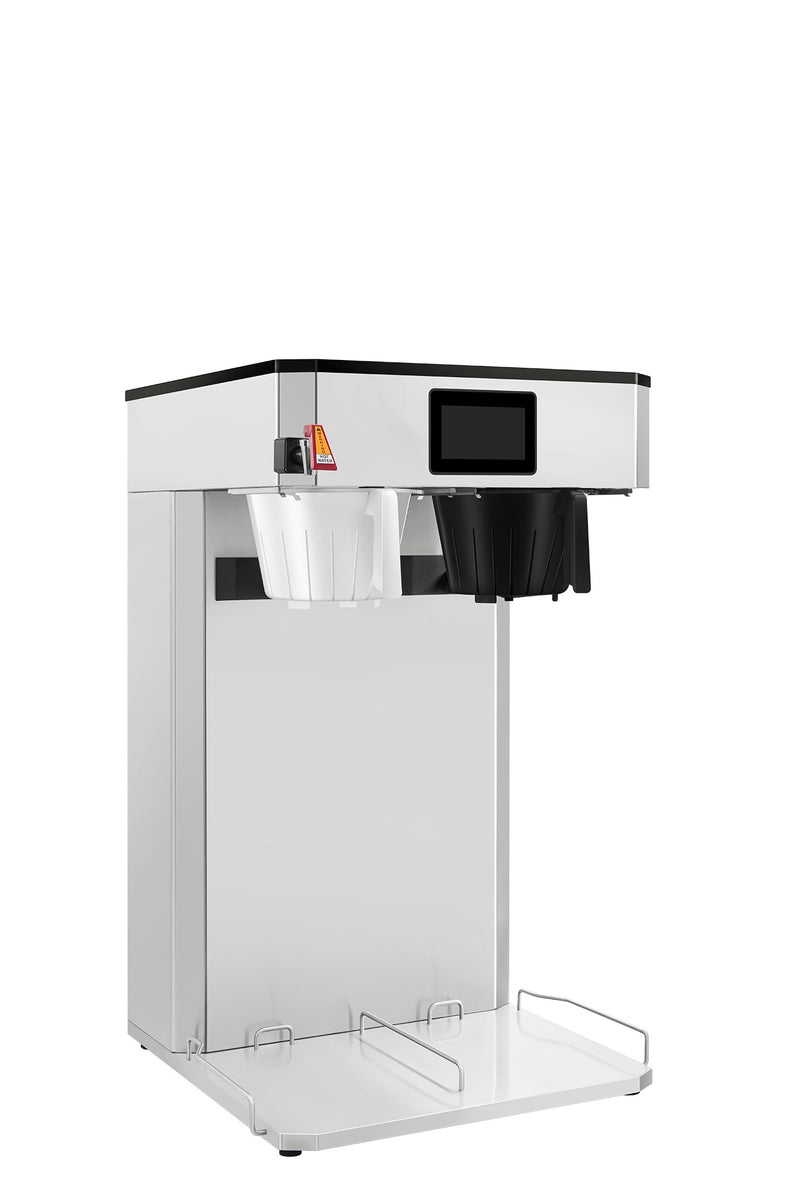

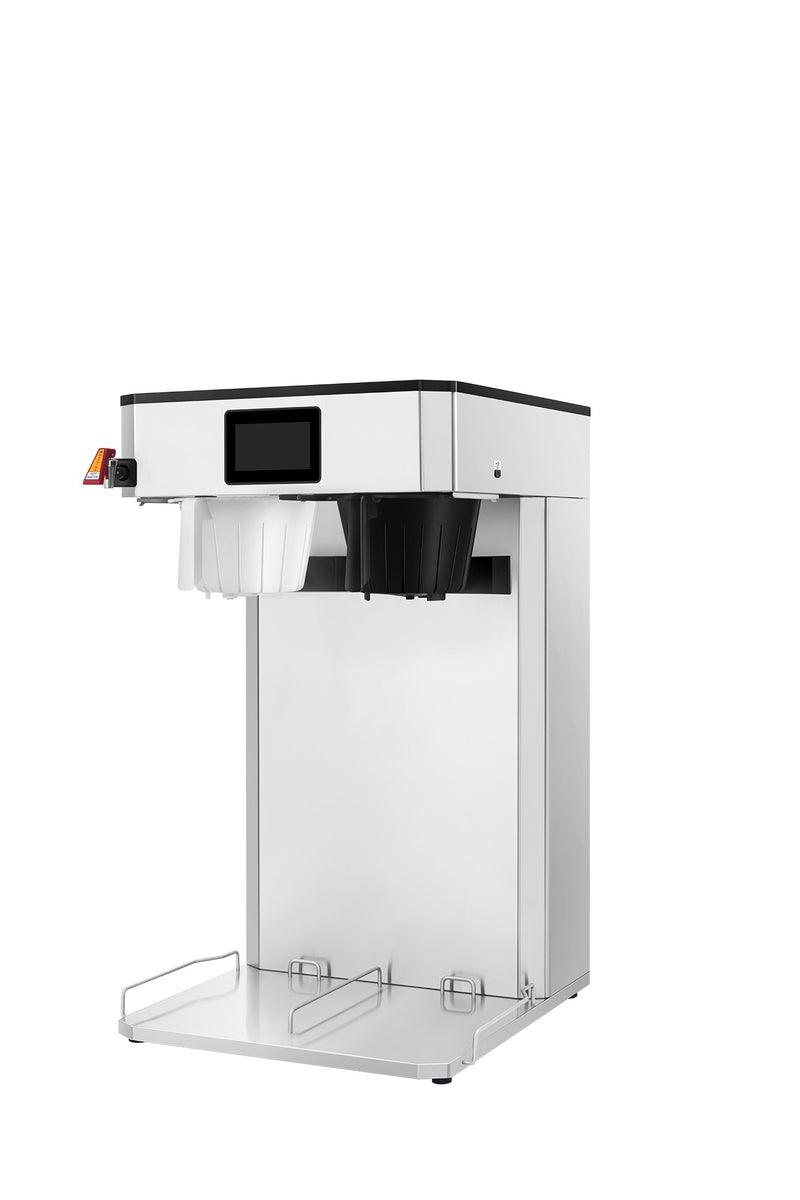

Atosa CB3T021 Tall Twin Coffee and Tea Brewer - 160 Cups/Hr, Dual Voltage
Atosa CB3T021 Tall Twin Coffee and Tea Brewer — 160 Cups Per Hour, Dual Voltage
The Atosa CB3T021 is a tall, twin-station commercial coffee and tea brewer built for high-volume cafés, restaurants, hotels, convenience stores, and iced tea programs that brew into tall servers and tea dispensers. Two brew stations let you run coffee and iced tea side by side, or two coffee blends at once, with 23-1/8" of clearance under each brew basket. It brews up to 160 cups (12 gallons) per hour with a 3 gallon capacity, and a built-in hot water dispenser handles tea, oatmeal, soups, and cocoa without tying up either brew station.
A 5" color touchscreen puts programmable brew recipes, pre-infusion, and pulse brew at your staff's fingertips, so every batch tastes the same no matter who presses the button. Field-adjustable dual voltage lets you run it at 208–240V for faster hot water recovery or switch to 120V where that's the only power available.
Built for High-Volume Coffee and Tea Service
- Iced tea programs — brew directly into two tall 3 or 5 gallon tea dispensers
- Coffee and tea side by side — coffee on one station, iced tea on the other
- Regular and decaf — two brew stations keep both blends ready through the rush
- Restaurants, diners, and hotels — continuous coffee and tea for breakfast buffets, lunch, and banquets
- Convenience stores — self-serve coffee and iced tea stations with consistent flavor
- Catering and events — high-volume coffee and tea for large groups
Brewing Technology
The CB3T021 is built around even, consistent extraction. Sprayhead technology distributes water evenly over the coffee grounds for uniform extraction and consistent flavor. Pre-infusion lets the grounds bloom before the brew cycle starts, and pulse brew uses timed water pulses to promote even saturation. Together they help you get the most flavor out of every pound of coffee or tea.
Programmable Controls
The 5" color touchscreen offers programmable brewing and intuitive digital controls. Save customizable brew recipes for one-touch operation, and use USB programming to upload settings quickly. A brew counter tracks total brew cycles for maintenance scheduling and usage monitoring, and energy-saver mode lowers tank temperature during idle periods to conserve energy.
Hot Water Dispenser and Dual Voltage
The built-in hot water dispenser serves hot water for tea, instant oatmeal, soups, and cocoa. The brewer is field adjustable for dual voltage: run it at 208–240V (2180–2880W) for faster recovery or at 120V (1440W).
- At 2180–2880W: estimated hot water recovery of 4.6–7.4 gal/hr
- At 1440W: estimated hot water recovery of 3.0–3.7 gal/hr
It ships with a NEMA L14-20 plug as standard for 208–240V operation, with a NEMA 5-15P plug available as an option for 120V.
Compatible Servers and Dispensers
The CB3T021 supports standard 1 to 1.5 gallon and larger coffee servers or tea dispensers. Atosa tall tea dispensers made for this brewer include the TD-3T-DT 3 gallon and TD-5T-DT 5 gallon tea dispensers, both with drip trays. Only need one brew station? See the tall single CB3T011. Need a lower profile? See the short twin CB3L021.
Specifications
| Spec | Detail |
|---|---|
| Model | CB3T021 |
| Configuration | Coffee and tea brewer, tall, twin |
| Capacity | 3 gal / 11.36 L |
| Brew capacity | Up to 160 cups (12 gallons) per hour |
| Hot water dispenser | Yes |
| Hot water recovery (estimated) | 3.0–3.7 gal/hr at 1440W; 4.6–7.4 gal/hr at 2180–2880W |
| Brewing features | Sprayhead technology, pre-infusion, pulse brew |
| Controls | 5" color touchscreen, programmable brew recipes, USB programming |
| Other features | Energy-saver mode, brew counter |
| Compatible servers | Standard 1–1.5 gal and larger coffee servers or tea dispensers |
| Voltage | 120/208–240V, 60Hz, 1-phase, field adjustable |
| Wattage | 1440W / 2180–2880W |
| Amps | 12 / 10.4–12 |
| Plug | NEMA L14-20 (standard) / NEMA 5-15P (optional) |
| Water inlet | 3/4" MNPT |
| Water pressure | 7.3–87 psi |
| Water flow rate | 0.05–0.6 MPa |
| Included water connection | 3/8" O.D. push-to-connect x 3/4" FNPT water inlet connector and 3/8" O.D. tubing |
| Construction | Stainless steel body |
| Width | 24-3/8" |
| Depth x height | 21-7/8" x 35-3/4" |
| Brew clearance (basket to base) | 23-1/8" |
| Net weight | 61.40 lb |
| Shipping weight | 77.16 lb |
| Operating clearance | 5-7/8" on all sides |
| Warranty | 1-year parts and labor |
| Certifications | ETL, cETLus |
Installation
The CB3T021 connects to a water line through a 3/4" MNPT inlet and operates at 7.3–87 psi water pressure. It includes a 3/8" O.D. push-to-connect x 3/4" FNPT water inlet connector and 3/8" O.D. tubing for easy water line installation. The standard NEMA L14-20 plug requires a matching 208–240V receptacle, so confirm your electrical before installation. Leave at least 5-7/8" of clearance on all sides for operation and heat dissipation, and confirm you have enough vertical space for the 35-3/4" height. To protect the brewer from scale and keep flavor consistent, pair it with a commercial water filter.
Why Operators Choose Atosa
Atosa builds commercial equipment with the features that matter in daily service, like programmable controls, dual voltage flexibility, and a stainless steel body, at a price independent operators can afford. Browse more commercial coffee machines and beverage dispensers, or spread the cost with restaurant equipment financing.
Frequently Asked Questions
How much coffee can the CB3T021 brew per hour?
Up to 160 cups (12 gallons) of coffee or tea per hour.
What is the difference between the CB3T021 and the CB3T011?
The CB3T021 is the twin model, with two brew stations, a 3 gallon capacity, and a 24-3/8" width. The CB3T011 is the single model, with one brew station, a 1.5 gallon capacity, and a 14-5/8" width. Both have 23-1/8" of clearance under the brew basket.
What is the difference between the CB3T021 and the CB3L021?
Both are twin brewers with a 3 gallon capacity. The CB3T021 is the tall model, with 23-1/8" of clearance under the brew basket for tall tea dispensers. The CB3L021 is the short model, with 15-7/8" of clearance.
Can I brew coffee and tea at the same time?
Yes. The twin design lets you brew into two servers side by side, such as coffee on one station and iced tea on the other.
What voltage does the CB3T021 use?
It's field adjustable for 120V or 208–240V, 60Hz, single phase. It draws 1440W and 12 amps at 120V, or 2180–2880W and 10.4–12 amps at 208–240V.
What plug does the CB3T021 come with?
A NEMA L14-20 plug is standard for 208–240V operation. A NEMA 5-15P plug is optional for 120V.
Does the CB3T021 have a hot water dispenser?
Yes. Estimated hot water recovery is 3.0–3.7 gal/hr at 1440W and 4.6–7.4 gal/hr at 2180–2880W.
What servers work with the CB3T021?
It supports standard 1 to 1.5 gallon and larger coffee servers or tea dispensers. Atosa tall tea dispensers for this brewer include the TD-3T-DT and TD-5T-DT.
What water connection does the CB3T021 need?
A 3/4" MNPT water inlet with 7.3–87 psi water pressure. It includes a 3/8" O.D. push-to-connect x 3/4" FNPT water inlet connector and 3/8" O.D. tubing.
Can I program brew recipes?
Yes. The 5" color touchscreen saves customizable brew recipes for one-touch operation, and settings can be uploaded by USB.
How much clearance does the CB3T021 need?
Leave at least 5-7/8" of clearance on all sides for operation and heat dissipation.
What warranty comes with the CB3T021?
One year parts and labor.
Is the CB3T021 certified for commercial use?
Yes. It's ETL and cETLus listed.
