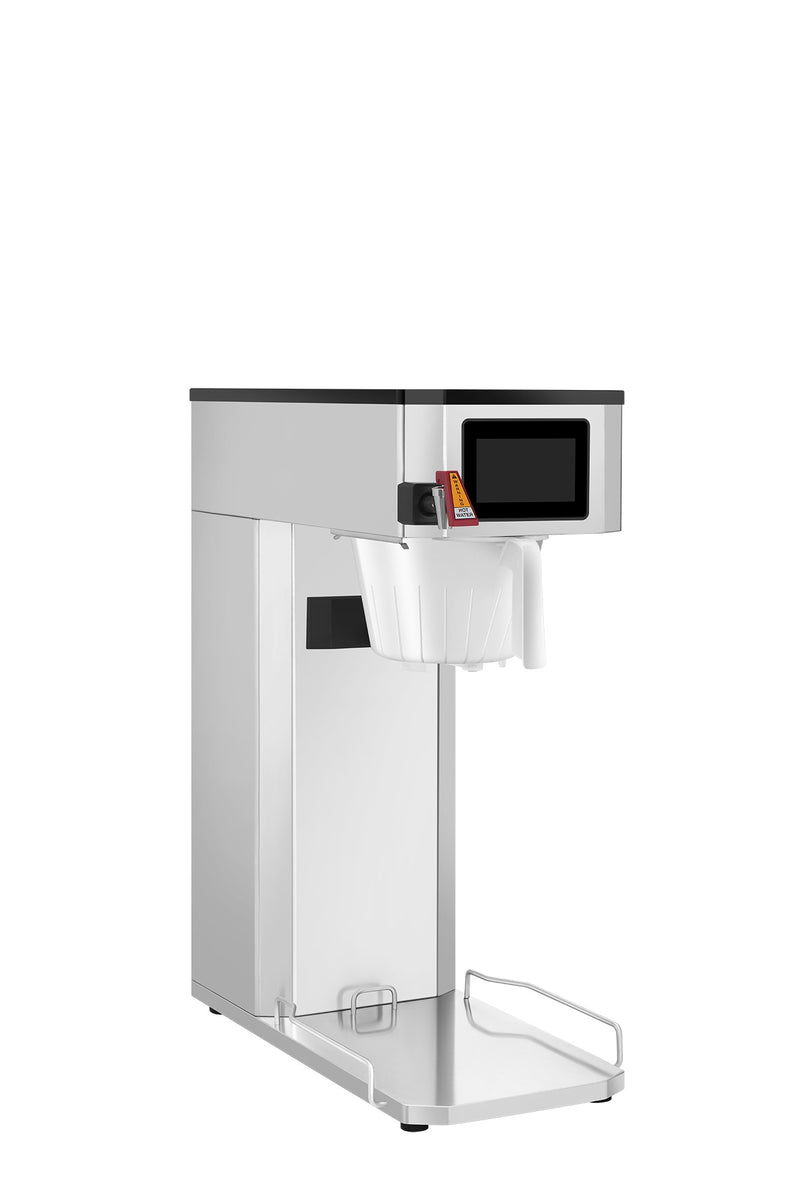

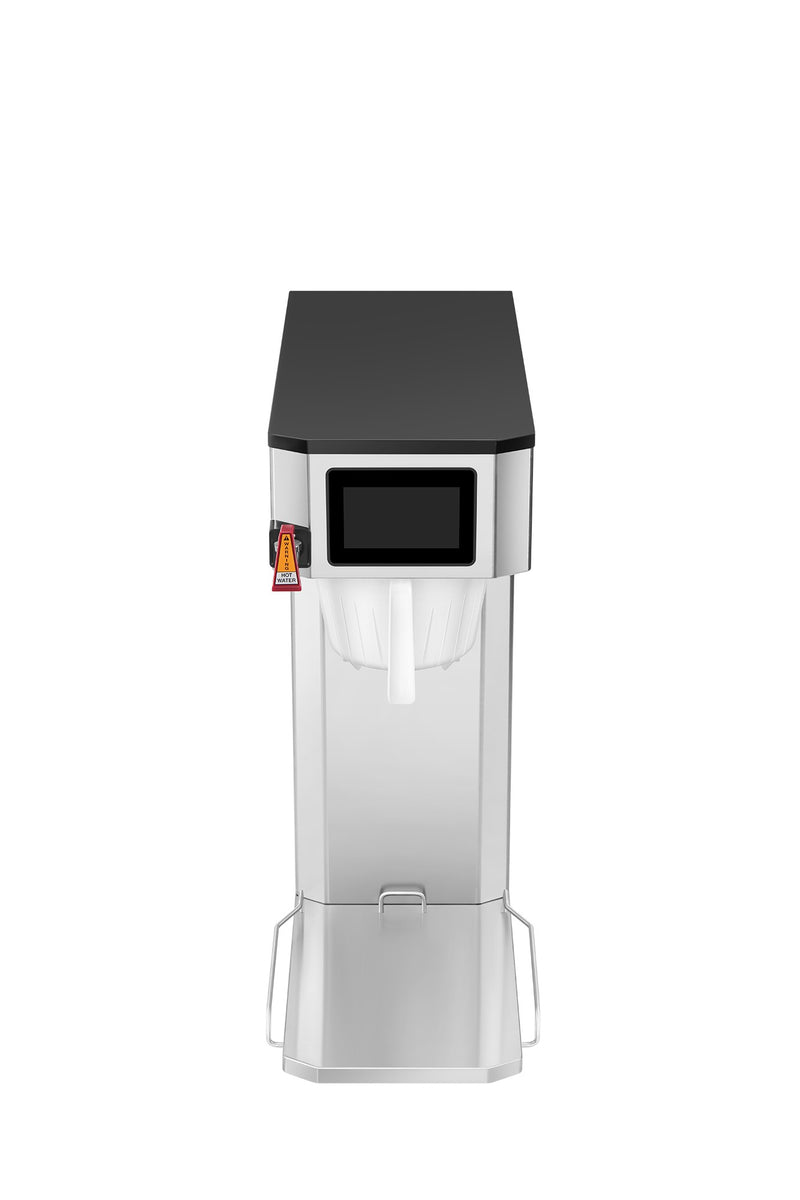

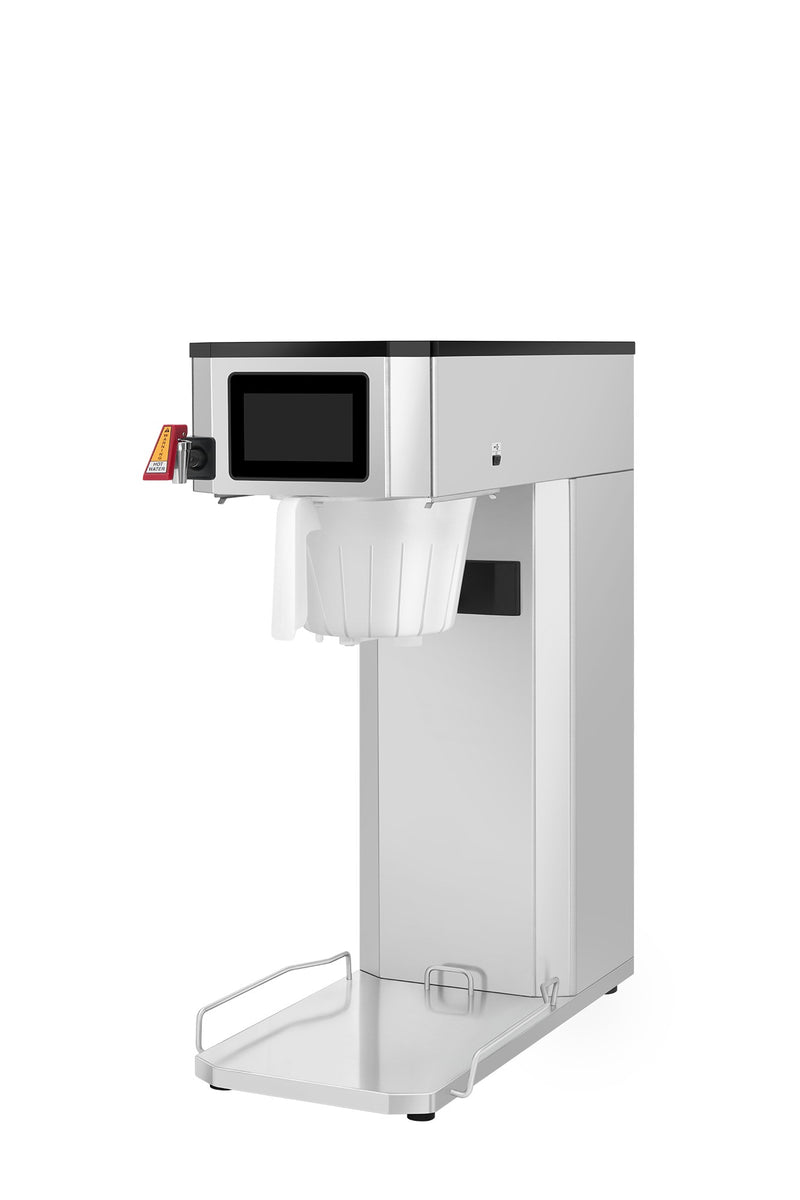

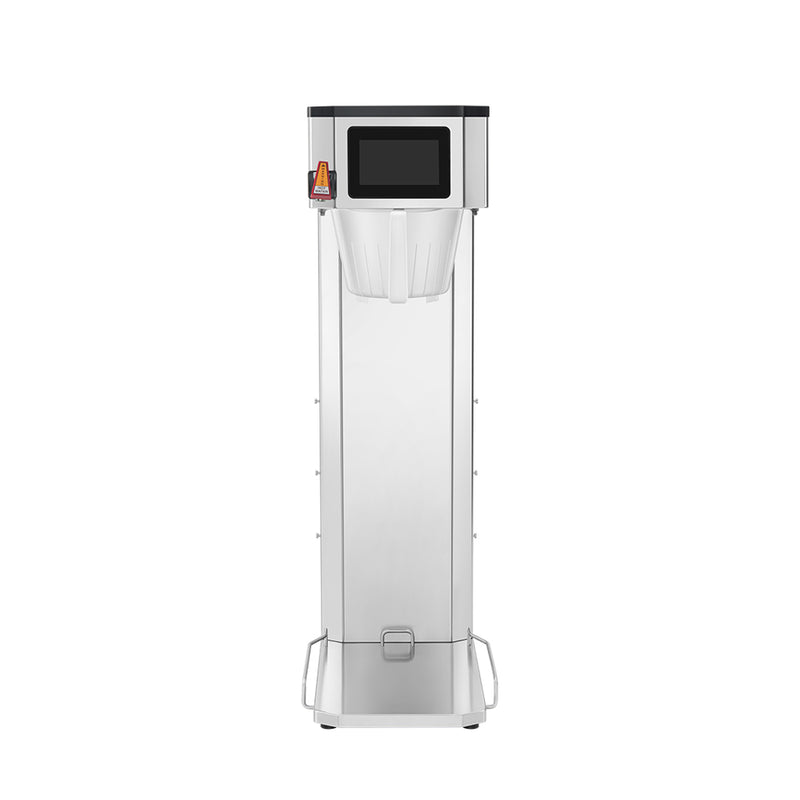

Atosa CB3T011 Tall Single Coffee and Tea Brewer - 160 Cups/Hr, Dual Voltage
Atosa CB3T011 Tall Single Coffee and Tea Brewer — 160 Cups Per Hour, Dual Voltage
The Atosa CB3T011 is a tall, single-station commercial coffee and tea brewer built for cafés, restaurants, convenience stores, and iced tea programs that brew into taller servers and tea dispensers. Its tall frame gives you 23-1/8" of clearance under the brew basket, and it brews up to 160 cups (12 gallons) per hour with a 1.5 gallon capacity. A built-in hot water dispenser handles tea, oatmeal, soups, and cocoa without tying up the brew cycle.
A 5" color touchscreen puts programmable brew recipes, pre-infusion, and pulse brew at your staff's fingertips, so every batch tastes the same no matter who presses the button. Field-adjustable dual voltage lets you run it on a standard 120V outlet or switch to 208–240V for faster hot water recovery.
Built for Consistent Coffee and Tea Service
- Iced tea programs — brew directly into tall 3 and 5 gallon tea dispensers
- Cafés and coffee shops — batch brew drip coffee to keep lines moving during the morning rush
- Restaurants and diners — fresh coffee and iced tea for breakfast, lunch, and dinner service
- Convenience stores — self-serve coffee and tea stations with consistent flavor
- Offices and break rooms — one-touch brewing anyone can operate
- Catering and events — high-volume coffee and tea from a single-station footprint
Brewing Technology
The CB3T011 is built around even, consistent extraction. Sprayhead technology distributes water evenly over the coffee grounds for uniform extraction and consistent flavor. Pre-infusion lets the grounds bloom before the brew cycle starts, and pulse brew uses timed water pulses to promote even saturation. Together they help you get the most flavor out of every pound of coffee or tea.
Programmable Controls
The 5" color touchscreen offers programmable brewing and intuitive digital controls. Save customizable brew recipes for one-touch operation, and use USB programming to upload settings quickly. A brew counter tracks total brew cycles for maintenance scheduling and usage monitoring, and energy-saver mode lowers tank temperature during idle periods to conserve energy.
Hot Water Dispenser and Dual Voltage
The built-in hot water dispenser serves hot water for tea, instant oatmeal, soups, and cocoa. The brewer is field adjustable for dual voltage: run it at 120V (1440W) or switch to 208–240V (2180–2880W) for faster recovery.
- At 1440W: estimated hot water recovery of 3.0–3.7 gal/hr
- At 2180–2880W: estimated hot water recovery of 4.6–7.4 gal/hr
It ships with a NEMA 5-15P plug as standard, with a NEMA L14-20 plug available as an option for 208–240V operation.
Compatible Servers and Dispensers
The CB3T011 supports standard 1 to 1.5 gallon and larger coffee servers or tea dispensers. Atosa tall tea dispensers made for this brewer include the TD-3T-DT 3 gallon and TD-5T-DT 5 gallon tea dispensers, both with drip trays. Need a shorter footprint? See the short single CB3L011.
Specifications
| Spec | Detail |
|---|---|
| Model | CB3T011 |
| Configuration | Coffee and tea brewer, tall, single |
| Capacity | 1.5 gal / 5.68 L |
| Brew capacity | Up to 160 cups (12 gallons) per hour |
| Hot water dispenser | Yes |
| Hot water recovery (estimated) | 3.0–3.7 gal/hr at 1440W; 4.6–7.4 gal/hr at 2180–2880W |
| Brewing features | Sprayhead technology, pre-infusion, pulse brew |
| Controls | 5" color touchscreen, programmable brew recipes, USB programming |
| Other features | Energy-saver mode, brew counter |
| Compatible servers | Standard 1–1.5 gal and larger coffee servers or tea dispensers |
| Voltage | 120/208–240V, 60Hz, 1-phase, field adjustable |
| Wattage | 1440W / 2180–2880W |
| Amps | 12 / 10.4–12 |
| Plug | NEMA 5-15P (standard) / NEMA L14-20 (optional) |
| Water inlet | 3/4" MNPT |
| Water pressure | 7.3–87 psi |
| Water flow rate | 0.05–0.6 MPa |
| Included water connection | 3/8" O.D. push-to-connect x 3/4" FNPT water inlet connector and 3/8" O.D. tubing |
| Construction | Stainless steel body |
| Width | 14-5/8" |
| Depth x height | 21-7/8" x 35-3/4" |
| Brew clearance (basket to base) | 23-1/8" |
| Net weight | 42.88 lb |
| Shipping weight | 54.01 lb |
| Operating clearance | 5-7/8" on all sides |
| Warranty | 1-year parts and labor |
| Certifications | ETL, cETLus |
Installation
The CB3T011 connects to a water line through a 3/4" MNPT inlet and operates at 7.3–87 psi water pressure. It includes a 3/8" O.D. push-to-connect x 3/4" FNPT water inlet connector and 3/8" O.D. tubing for easy water line installation. Leave at least 5-7/8" of clearance on all sides for operation and heat dissipation, and confirm you have enough vertical space for the 35-3/4" height. To protect the brewer from scale and keep flavor consistent, pair it with a commercial water filter.
Why Operators Choose Atosa
Atosa builds commercial equipment with the features that matter in daily service, like programmable controls, dual voltage flexibility, and a stainless steel body, at a price independent operators can afford. Browse more commercial coffee machines and beverage dispensers, or spread the cost with restaurant equipment financing.
Frequently Asked Questions
How much coffee can the CB3T011 brew per hour?
Up to 160 cups (12 gallons) of coffee or tea per hour.
What is the difference between the CB3T011 and the CB3L011?
The CB3T011 is the tall model, with a 1.5 gallon capacity and 23-1/8" of clearance under the brew basket for taller tea dispensers. The CB3L011 is the short model, with a 1 gallon capacity and 15-7/8" of clearance.
What voltage does the CB3T011 use?
It's field adjustable for 120V or 208–240V, 60Hz, single phase. It draws 1440W and 12 amps at 120V, or 2180–2880W and 10.4–12 amps at 208–240V.
What plug does the CB3T011 come with?
A NEMA 5-15P plug is standard. A NEMA L14-20 plug is optional for 208–240V operation.
Does the CB3T011 have a hot water dispenser?
Yes. Estimated hot water recovery is 3.0–3.7 gal/hr at 1440W and 4.6–7.4 gal/hr at 2180–2880W.
What servers work with the CB3T011?
It supports standard 1 to 1.5 gallon and larger coffee servers or tea dispensers. Atosa tall tea dispensers for this brewer include the TD-3T-DT and TD-5T-DT.
What water connection does the CB3T011 need?
A 3/4" MNPT water inlet with 7.3–87 psi water pressure. It includes a 3/8" O.D. push-to-connect x 3/4" FNPT water inlet connector and 3/8" O.D. tubing.
Can I program brew recipes?
Yes. The 5" color touchscreen saves customizable brew recipes for one-touch operation, and settings can be uploaded by USB.
How much clearance does the CB3T011 need?
Leave at least 5-7/8" of clearance on all sides for operation and heat dissipation.
What warranty comes with the CB3T011?
One year parts and labor.
Is the CB3T011 certified for commercial use?
Yes. It's ETL and cETLus listed.
