Atosa AUR24SD 24-Inch One Door Undercounter Refrigerator, 3.7 cu. ft.

Atosa 5-Year Extended Warranty Protection - Parts and Labor
by Atosa
Save 28% Save 28%
Original price $1,982.00
Original price $1,982.00 - Original price $1,982.00
Original price $1,982.00
Current price $1,429.00
$1,429.00 - $1,429.00
Current price $1,429.00

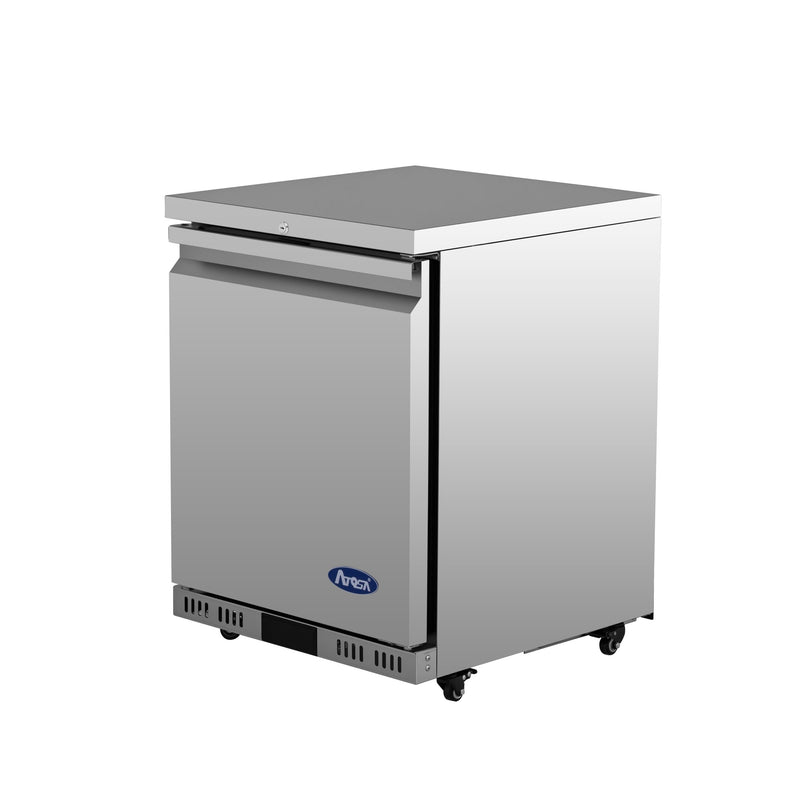

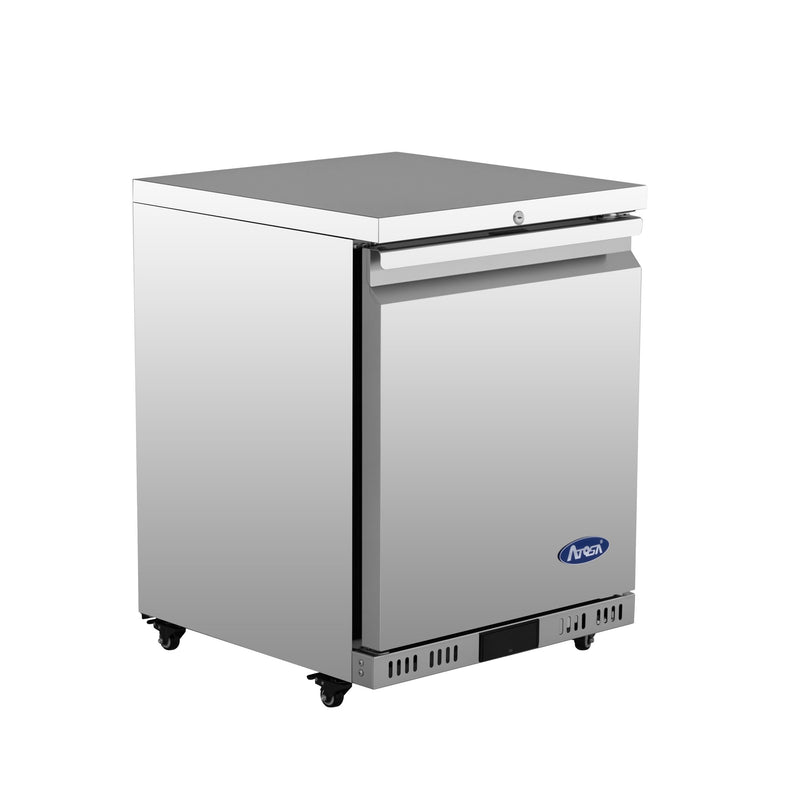

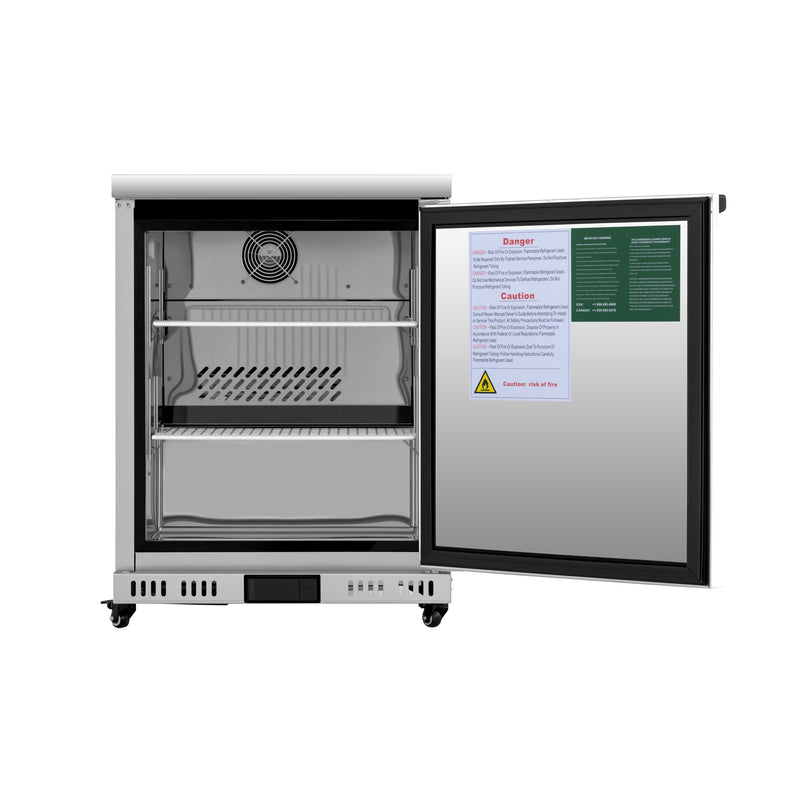

Atosa AUR24SD 24-Inch One Door Undercounter Refrigerator, 3.7 cu. ft.

The Atosa AUR24SD is a 24 inch commercial undercounter refrigerator with one door. It holds 3.7 cu. ft. at 35°F to 38°F, right where your staff work, and plugs into a standard 115V outlet.

At a Glance

  • Size: 23-7/8" W x 26" D x 32-1/2" H (with standard 2" casters)
  • Storage: 3.7 cu. ft., 2 shelves
  • Doors: solid door, self-closing with stay-open feature, field reversible
  • Temperature: 35°F to 38°F
  • Power: 115V, 2.4 amps, standard plug (NEMA 5-15P)
  • Warranty: 3 years parts and labor, 5 years compressor

Most units ship within one business day from our warehouse with free freight to the lower 48.

A Shallow Depth Undercounter Refrigerator

This 24 inch undercounter refrigerator is only 26" deep, 4" shallower than the rest of the AUR line. That makes it a shallow depth commercial refrigerator for a bar, coffee counter or tight prep station. It also works as an under bar refrigerator for garnish, mixers and backup drinks.

24-Inch Shallow-Depth Undercounter Refrigerator for Tight Spaces

The 23-7/8-inch-wide, 26-inch-deep AUR24SD fits compact beverage, garnish, and prep stations where every inch of floor space matters. Its 3.7 cu. ft. single-door base is designed for a focused inventory.

Compare Undercounter Sizes

Compare the AUR27SD for 6.4 cu. ft. of storage when you can accommodate a deeper 30-inch cabinet.

Built for Daily Commercial Use

  • Stainless steel inside and out
  • R290, a natural refrigerant
  • Electronic temperature controller
  • Self-closing door with a stay-open feature, field reversible
  • Two pre-installed epoxy coated shelves per section
  • Pre-installed 2" heavy duty swivel plate casters (B0604434 with brake, B0604433 without)
  • Rear grate over the condenser

Casters and Height

It ships on 2" heavy duty swivel plate casters. Need it lower or higher? Atosa offers these caster options:

Caster Part # (with brake) Part # (no brake) Overall height
1.2" low-profile swivel plate R06001000228 R06001000229 31-1/4"
1.5" low-profile swivel plate R06001000063 N/A 31-7/8"
2" heavy duty swivel plate (standard) B0604434 B0604433 32-3/8"
4" swivel stem B0604421 B0604413 34-3/8"
5" swivel stem B0604007 B0604006 35-1/4"

Pick the Right Size

Model Doors Width Capacity Shelves
AUR24SD (this model) 1 23-7/8" 3.7 cu. ft. 2
AUR27SD 1 27-1/2" 6.4 cu. ft. 2
AUR36SD 2 36-3/8" 8.6 cu. ft. 4
AUR48SD 2 48-1/4" 11.8 cu. ft. 4
AUR60SD 2 60-1/4" 15 cu. ft. 4
AUR72SD 3 72-5/8" 18.2 cu. ft. 6

Need the same size for frozen food? See the matching Atosa AUF24SD undercounter freezer.

Want drawers instead of doors? See the AUR27D2 and the rest of the drawer line.

Need a different size? Shop all undercounter refrigerators or see the full Atosa refrigerator lineup.

Specifications

Spec Detail
Configuration Undercounter refrigerator, one door
Doors (1) solid door, self-closing with stay-open feature, field reversible
Capacity 3.7 cu. ft.
Shelves (2) epoxy coated shelves
Exterior dimensions 23-7/8" W x 26" D x 32-1/2" H with standard casters
Temperature range 35°F to 38°F
Temperature control Electronic
Compressor 1/7 HP
Refrigerant R290
Construction Stainless steel interior and exterior
Casters 2" heavy duty swivel plate, pre-installed (B0604434 with brake, B0604433 without)
Electrical 115V / 60Hz / 1-phase, 2.4 amps
Plug NEMA 5-15P
Net weight 108 lb
Shipping weight 138 lb
Warranty 3-year parts and labor, 5-year compressor
Certifications cETLus, ETL-Sanitation

Before You Order

  • Plan for a standard 115V outlet with a NEMA 5-15 receptacle.
  • Measure under your counter: the unit is about 32-1/2" tall on its standard casters, 26" deep and 23-7/8" wide.
  • Need it lower or higher? See the caster options above.
  • Leave the unit some room to breathe and clean the condenser often, as Atosa advises.
  • Drawer cartridges can be added in the field later if you want drawers instead of a door section.

Atosa AUR24SD FAQ

Why choose the 24-inch shallow-depth AUR24SD?

Its 26-inch cabinet depth is four inches less than the 27-inch AUR27SD, making it useful where aisle clearance is limited.

What size is the Atosa AUR24SD?

The AUR24SD is 23-7/8" wide, 26" deep and about 32-1/2" tall on its standard 2" casters. It weighs 108 lb (138 lb shipping weight).

How much does the AUR24SD hold?

It holds 3.7 cu. ft. and comes with 2 shelves.

What temperature does the AUR24SD hold?

It holds 35°F to 38°F with an electronic temperature controller.

Will the AUR24SD fit under my counter?

It is about 32-1/2" tall on its standard 2" casters, so it fits under a standard 36" high counter. Lower 1.2" and 1.5" casters bring it down to about 31-1/4" or 31-7/8".

Can I switch the door swing on the AUR24SD?

Yes. The door is field reversible, so you can change the hinge side at install.

What power does the AUR24SD need?

It runs on 115V and draws 2.4 amps. It has a standard NEMA 5-15P plug, so it plugs into a regular 115V outlet.

How often should I clean the AUR24SD condenser?

Atosa says to clean the condenser frequently. Pull the unit out on its casters, vacuum the condenser coil, and brush off any dust or grease. A clean condenser helps the refrigerator hold temperature.

What warranty comes with the AUR24SD?

3 years parts and labor and 5 years on the compressor.

Spec Sheet

Download the Atosa AUR24SD spec sheet (PDF, Rev. 08/26)
