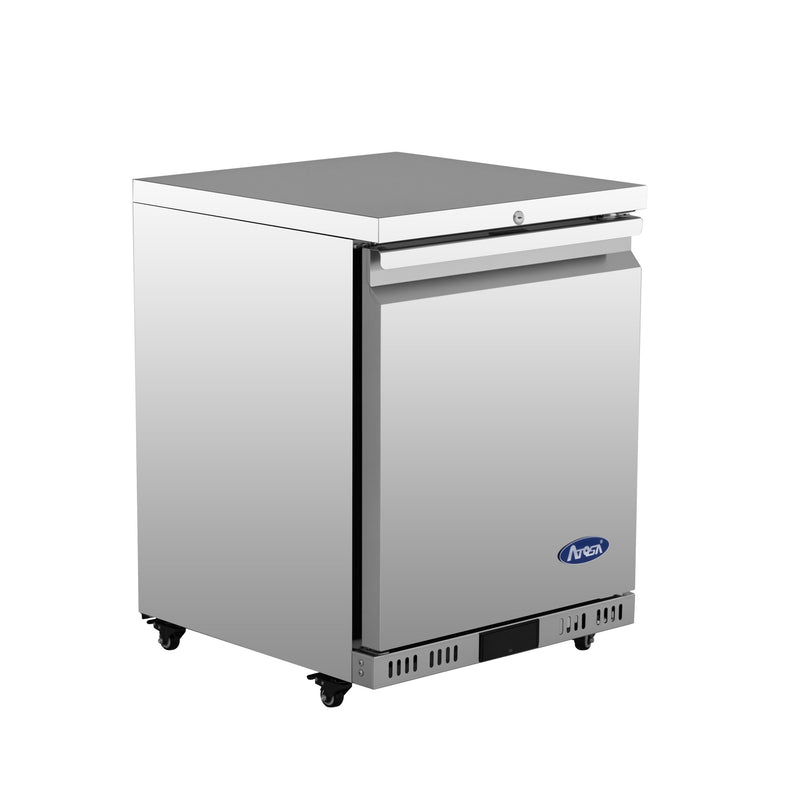

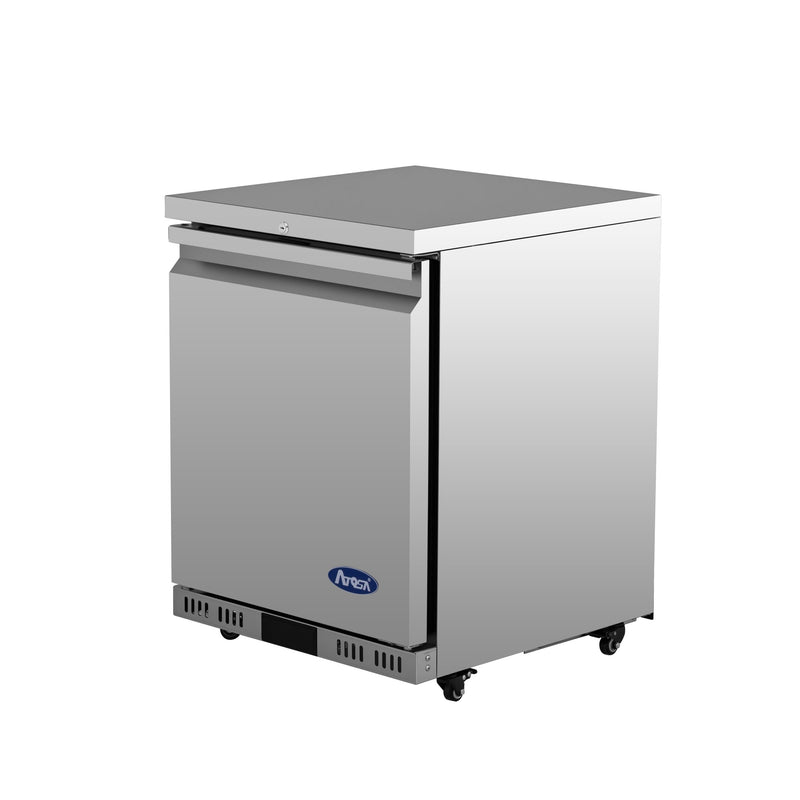

Atosa AUF24SD 24-Inch One Door 3.7 cu. ft. Undercounter Freezer
Atosa AUF24SD 24" One Door Undercounter Freezer, 3.7 cu. ft.
The Atosa AUF24SD is a 24 inch commercial undercounter freezer with one door. It holds 3.7 cu. ft. at -8°F to 0°F, right where your staff work.
It is 23-7/8" wide, 26" deep and 32-1/2" tall on its 2" casters, so it slides under a standard 36" high counter. It is the smallest model in the Atosa AUF line.
If you need an under bar freezer, or a small commercial freezer for a coffee counter or food truck, this 24 inch under counter freezer fits where nothing bigger will. See all commercial undercounter freezers or the full Atosa undercounter freezer line.
Most units ship within one business day from our warehouse with free freight to the lower 48.
24-Inch Shallow-Depth Undercounter Freezer for Compact Kitchens
The AUF24SD holds 3.7 cu. ft. of frozen ingredients in a 23-7/8-inch-wide, 26-inch-deep cabinet suited to small stations with limited aisle clearance.
Compare Undercounter Sizes
Compare the AUF27SD for 6.4 cu. ft. when a deeper 30-inch cabinet fits.
Cooling and Controls
A 1/5 HP compressor runs on R290, a natural refrigerant. The electronic temperature controller holds -8°F to 0°F. It is a self-contained, plug-in unit, so there is nothing to plumb.
Built for a Commercial Kitchen

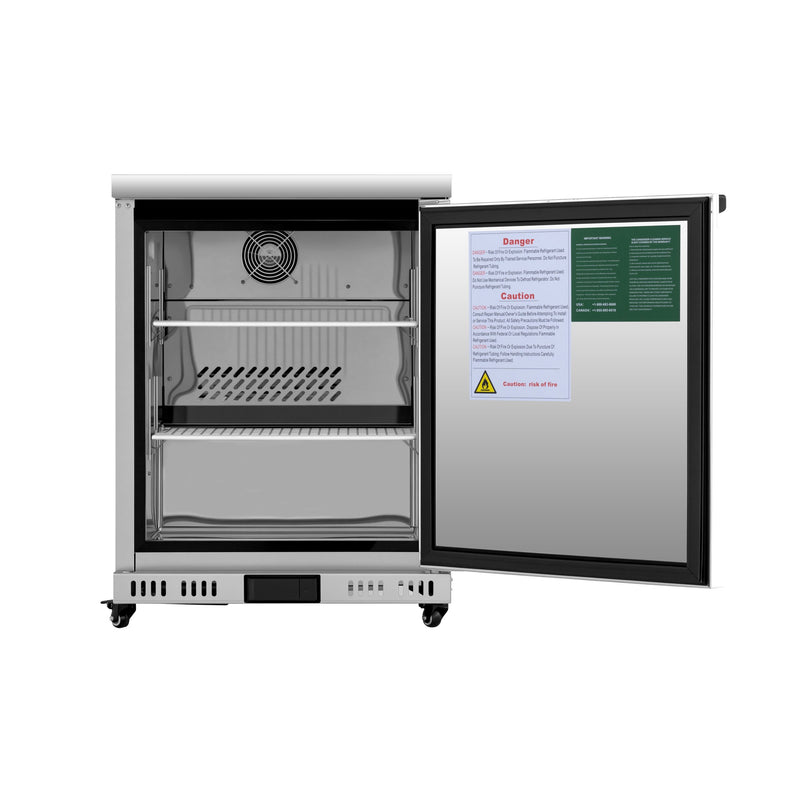

The inside and outside are stainless steel, which stands up to heat, spills and commercial cleaners. The door closes on its own and stays open when you swing it all the way, which makes loading easier. Magnetic gaskets seal tight. The door is field-reversible, so you can switch the hinge side at install.
It comes with 1 adjustable epoxy-coated wire shelf. Product also sits on the cabinet floor, so you get two levels.
Casters and Height
It ships on 2" heavy duty swivel plate casters, which put the overall height at about 32-1/2". Need it lower or higher? Atosa offers these caster options:
| Caster | Part # (with brake) | Part # (no brake) | Overall height |
|---|---|---|---|
| 1.2" low-profile swivel plate | R06001000228 | R06001000229 | 31-1/4" |
| 1.5" low-profile swivel plate | R06001000063 | N/A | 31-7/8" |
| 2" heavy duty swivel plate (standard) | B0604434 | B0604433 | 32-3/8" |
| 4" swivel stem | B0604421 | B0604413 | 34-3/8" |
| 5" swivel stem | B0604007 | B0604006 | 35-1/4" |
Pick the Right Size
Every model in the Atosa AUF undercounter freezer line holds -8°F to 0°F and plugs into a standard 115V outlet.
| Model | Doors | Width | Capacity | Shelves |
|---|---|---|---|---|
| AUF24SD (this model) | 1 door | 23-7/8" | 3.7 cu. ft. | 1 |
| AUF27SD | 1 door | 27-1/2" | 6.4 cu. ft. | 1 |
| AUF36SD | 2 doors | 36-3/8" | 8.6 cu. ft. | 2 |
| AUF48SD | 2 doors | 48-1/4" | 11.8 cu. ft. | 2 |
| AUF60SD | 2 doors | 60-1/4" | 15 cu. ft. | 2 |
| AUF27D2 | 2 drawers | 27-1/2" | 6.5 cu. ft. | 5 pans included |
Specifications
| Spec | Detail |
|---|---|
| Configuration | Undercounter freezer, 1-section |
| Doors | (1) self-closing solid hinged door with stay-open feature, field-reversible |
| Capacity | 3.7 cu. ft. |
| Shelves | 1 adjustable epoxy-coated wire shelf |
| Exterior dimensions | 23-7/8" W x 26" D x 32-1/2" H (on 2" casters) |
| Casters | 2" heavy duty swivel plate, pre-installed |
| Refrigerant | R290 hydrocarbon |
| Compressor | 1/5 HP |
| Temperature range | -8°F to 0°F |
| Temperature control | Electronic |
| Construction | Stainless steel interior and exterior |
| Door gasket | Magnetic |
| Electrical | 115V / 60Hz / 1-phase, 2.4 amps |
| Plug | NEMA 5-15P |
| Net weight | 108 lb |
| Shipping weight | 138 lb |
| Warranty | 3-year parts and labor, 5-year compressor (extended warranty up to 5 years available) |
| Certifications | cETLus, ETL-Sanitation |
Installation and Care
Set the unit on a level floor and plug it into a standard 115V outlet with a NEMA 5-15 receptacle. Leave it some room to breathe so the compressor gets fresh air, and clean the condenser often.
Atosa AUF24SD FAQ
What makes the 24-inch AUF24SD different from the 27-inch freezer?
The AUF24SD is shallower and narrower; the AUF27SD offers 2.7 cu. ft. more frozen storage.
What size is the Atosa AUF24SD?
The AUF24SD is 23-7/8" wide, 26" deep and 32-1/2" tall on its standard 2" casters. It weighs 108 lb (138 lb shipping weight).
How much does the AUF24SD hold?
It holds 3.7 cu. ft. and comes with 1 adjustable wire shelf, plus the cabinet floor, so you get two levels for product.
What temperature does the AUF24SD hold?
It holds -8°F to 0°F with an electronic temperature controller. Atosa recommends setting it between -8°F and 0°F for the best food quality.
Will the AUF24SD fit under my counter?
It is 32-1/2" tall on the standard 2" casters, so it fits under a standard 36" high counter. If you need it lower, the 1.2" low-profile casters bring the overall height down to 31-1/4".
What casters come with the AUF24SD?
It ships with 2" heavy duty swivel plate casters: part B0604434 with brake and B0604433 without. You can also order 1.2", 1.5", 4" or 5" casters.
Can I reverse the door on the AUF24SD?
Yes. The door is field-reversible, so you can switch the hinge side at install.
What power does the AUF24SD need?
It runs on 115V / 60Hz / 1-phase and draws 2.4 amps. It has a NEMA 5-15P plug, so it plugs into a standard 115V outlet.
How often should I clean the AUF24SD condenser?
Atosa says to clean the condenser frequently. Pull the unit out on its casters, vacuum the condenser coil, and brush off any flour, dust or grease. A clean condenser helps the freezer hold temperature.
What warranty comes with the AUF24SD?
3 years parts and labor and 5 years on the compressor. Extended coverage up to 5 years is available.
Spec Sheet
Download the Atosa AUF24SD spec sheet (PDF, Rev. 08/26)
Replacement Parts & Service for the AUF24SD
Every AUF24SD eventually needs routine service parts. We stock the most commonly requested OEM components including the 83022106 mounting bracket. See related parts in the Atosa parts collection or review the parts department guide for ordering details.
