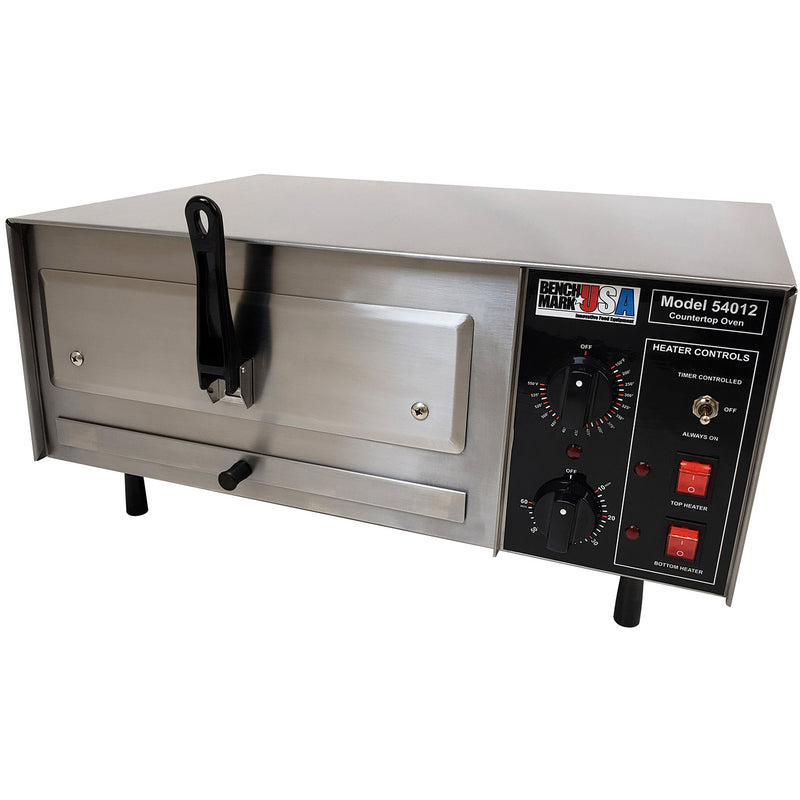

Winco Benchmark 54012 Countertop Oven

Winco Benchmark 54012 Multi-Function Countertop Oven (23" Wide, 12" Opening, 1750W, 120V, Salamander/Baker/Oven)

The Winco Benchmark 54012 is a 23-inch wide countertop multi-function oven that operates as a salamander, a baker, or a finishing oven from a single 120V plug. The 12-by-3-inch opening accepts a 12-inch pizza, a half-size sheet pan, or multiple sub sandwiches for toasting and melting. The 90 to 550 degree Fahrenheit thermostat range covers everything from holding to high-temperature broiling and pizza baking.

Stainless steel construction, full insulation that keeps the exterior under 150 degrees Fahrenheit, separate top and bottom heater switches, a 60-minute timer with stay-on, and 3-inch adjustable legs for easy under-unit cleaning. The unit is built for sandwich shops, pizzerias, c-stores, snack bars, concession stands, country clubs, and any operation that needs flexible cooking from a small countertop footprint.

Best Use Cases

• Sandwich shop melt and toast station
• Pizza shop personal-size and finishing oven
• Convenience store hot food program
• Bar food and snack service
• Concession stand at sports venues
• Country club pool deck or halfway house
• Bakery roll and pastry finishing
• Cafeteria or hospital floor pantry
• Hotel guest-floor breakfast station
• Catering commissary backup or auxiliary oven

Three Functions In One Cabinet

The 54012 operates as three different appliances depending on how the operator runs the heater switches. With the top element on at high heat the unit functions as a salamander for melting cheese, browning casserole tops, and finishing au gratin. With the bottom element on the unit functions as a baker for pizzas, focaccia, and bread. With both elements running together the unit functions as a full convection-free oven for sub sandwiches, hot apps, and casseroles. The 60-minute timer with stay-on feature handles both timed and indefinite-hold operations.

Fully Insulated Stainless Steel Cabinet

Heavy insulation keeps the outside cabinet temperature under 150 degrees Fahrenheit even during sustained high-heat use. That matters in tight prep lines, food trucks, and pass-throughs where staff brush against equipment. Stainless steel exterior and interior wipe down with a damp cloth and a degreaser, and the 3-inch adjustable legs lift the unit for easy under-cabinet cleaning.

Independent Top and Bottom Heater Switches

Operator-selectable top, bottom, or both elements gives flexibility no single-purpose oven offers. A pure salamander cannot bake. A pure pizza oven cannot brown a cheese melt from above without a hot top stone. The 54012 does both because the operator chooses which element fires.

Temperature Range

90 to 550 degrees Fahrenheit covers proofing at the low end, baking at the mid range, and broiling/salamander work at the high end. The thermostat is continuous-variable not stepped, so the operator dials in exact temperatures for the menu item.

Comparison to the 54016

The 54016 is the same oven in a wider 27-inch cabinet with a 16-inch by 3-inch opening. Choose the 54016 if you need to handle a 16-inch pizza, a full hotel pan rotated long-side-in, or longer sub sandwiches. Choose the 54012 if a 12-inch pizza and half-size pan capacity is sufficient and you want the smaller countertop footprint.

Comparison to a Conveyor Oven

A conveyor oven cooks at a fixed time and temperature for unattended throughput. The 54012 cooks attended, with the operator pulling product based on visual check. Choose a conveyor for high-volume single-item production. Choose the 54012 for flexible menus and lower volume.

Specifications

Installation Requirements

The 54012 plugs into a standard 120V 15-amp circuit using a NEMA 5-15 receptacle in the United States. In Canada it ships with a NEMA 5-20 plug requiring a 20-amp receptacle. At 14.6 amps the unit should run on a dedicated circuit to avoid breaker trips when other equipment is on the same line.

Installation Checklist

• Dedicated 120V 15-amp circuit (US) or 20-amp circuit (Canada)
• NEMA 5-15 receptacle (US) within reach of factory cord
• Heat-resistant countertop rated for unit weight
• 3-inch leg clearance under the unit
• Combustible surface clearance per manual
• Hood requirements confirmed with local AHJ
• Initial burn-in cycle per manual before first food contact

Frequently Asked Questions

What can the 54012 cook?

The 54012 functions as a salamander, baker, and full oven. It bakes 12-inch pizzas, toasts sub sandwiches, melts cheese on French onion soup or au gratin dishes, finishes casseroles, broils thin proteins, holds product, and reheats hot apps.

Does it have separate top and bottom controls?

Yes. Independent switches control the top and bottom heating elements. Run top only for salamander work, bottom only for baking, or both for full oven operation.

How hot does the outside cabinet get?

The fully insulated stainless steel cabinet stays under 150 degrees Fahrenheit on the exterior even during sustained high-heat operation.

What size pizza fits?

A 12-inch pizza fits the 12-by-3-inch opening. For 16-inch pizzas use the 54016.

Is the 54012 a convection oven?

No. It is a radiant heat oven with separate top and bottom elements. There is no fan for forced air convection.

Does the 54012 need a hood?

Hood requirements depend on local code and menu. Many jurisdictions allow ventless or Type II operation for countertop electric ovens. Confirm with your AHJ.

What is the warranty?

Winco provides a manufacturer warranty on the Benchmark series. Refer to the spec sheet and included paperwork for current terms.
