Atosa SBB48GGRAUS2 48-Inch Glass Door Shallow Back Bar Cooler, Black, 11.5 cu. ft.
Atosa SBB48GGRAUS2 48-Inch Glass Door Shallow Back Bar Cooler, Black, 11.5 cu. ft.

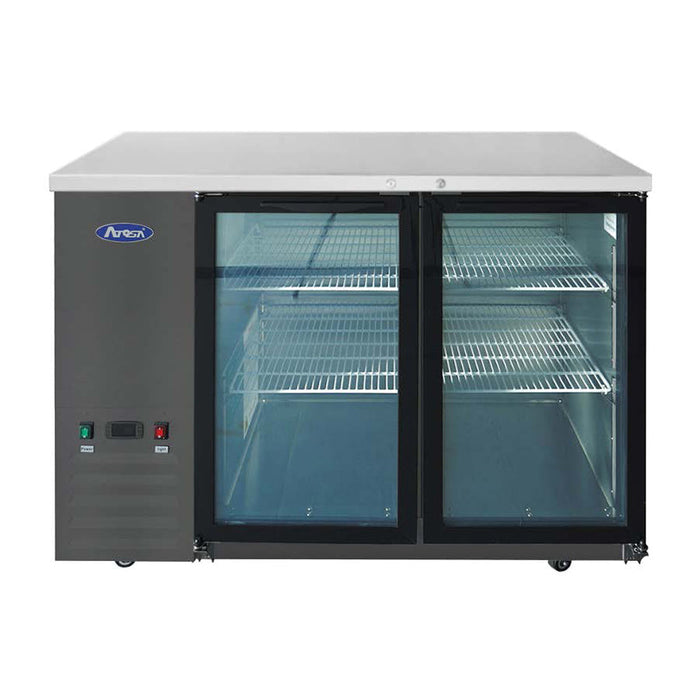

The Atosa SBB48GGRAUS2 is a 48" wide back bar cooler that is only 24-1/2" deep, with two glass doors and a black finish. It holds 11.5 cu. ft. at 35°F to 38°F, and it plugs into a standard 115V outlet.
At a Glance
- Size: 48" W x 24-1/2" D x 40-1/8" H
- Doors: 2 glass doors with locks
- Storage: 11.5 cu. ft., (4) epoxy coated shelves
- Temperature: 35°F to 38°F
- Finish: Black exterior with a stainless steel interior
- Power: 115V, 2.3 amps, standard plug (NEMA 5-15P)
- Warranty: 3 years parts and labor, 5 years compressor
Most units ship within one business day from our warehouse with free freight to the lower 48.
48-Inch Shallow-Depth Glass Door Back Bar Cooler in Black
This black glass door back bar cooler puts your drinks on display in a dark cabinet. LED lights inside make labels easy to read, and both doors have locks.
Where the Black 48" Glass Door Back Bar Cooler Fits Best
The SBB48GGRAUS2 has a black exterior with a stainless steel interior. The outside blends into dark wood, painted or black bar fronts, while the inside is still stainless. Choose it when guests will see the cooler and you want it to fit the room.
- Cocktail lounges and dining-room bars: the black cabinet blends into a dark bar front while the lit shelves show off bottles
- Wine bars: wine and sparkling bottles on display in a dark cabinet
- Sports bars and pubs with wood or painted back bars: beer on display without a bright stainless box
Its two glass doors open about 17" past the front of the cabinet, so keep that much aisle clear behind the bar. Prefer stainless? The Atosa SBB48GGRAUS1 is the same 48" cabinet and 11.5 cu. ft. with stainless steel inside and out.
Built for Daily Commercial Use
- Black exterior with a stainless steel interior
- Heavy duty compressor with R290, a natural refrigerant
- Slide out compressor assembly for easy service
- Electronic temperature controller
- LED interior lights
- Magnetic door gaskets
- Door locks standard
- Pre-installed epoxy coated shelves
- Pre-installed 2" casters
Pick the Right Size
| Model | Finish | Width | Capacity |
|---|---|---|---|
| SBB48GGRAUS1 | Stainless | 48" | 11.5 cu. ft. |
| SBB48GGRAUS2 (this model) | Black | 48" | 11.5 cu. ft. |
| SBB59GGRAUS1 | Stainless | 57-3/4" | 15 cu. ft. |
| SBB59GGRAUS2 | Black | 57-3/4" | 15 cu. ft. |
| SBB69GGRAUS1 | Stainless | 68" | 18.6 cu. ft. |
| SBB69GGRAUS2 | Black | 68" | 18.6 cu. ft. |
Want the stainless finish? See the Atosa SBB48GGRAUS1, the same size in stainless steel.
Want solid doors instead? See the Atosa SBB48GRAUS2, the same size with solid doors.
Have more depth to work with? The Atosa MBB48GGR is about 28" deep and holds more.
Shop all back bar coolers or our bar refrigeration.
Specifications
| Spec | Detail |
|---|---|
| Configuration | Back bar cooler, 24-1/2" deep, two glass doors |
| Doors | 2 glass doors with locks, magnetic gaskets |
| Capacity | 11.5 cu. ft. |
| Shelves | (4) epoxy coated shelves |
| Exterior dimensions | 48" W x 24-1/2" D x 40-1/8" H |
| Temperature range | 35°F to 38°F |
| Temperature control | Electronic |
| Compressor | 1/7 HP, heavy duty, slide out assembly |
| Refrigerant | R290 |
| Construction | Black exterior with a stainless steel interior |
| Lighting | LED interior lights |
| Casters | 2", pre-installed |
| Electrical | 115V / 60Hz / 1-phase, 2.3 amps |
| Plug | NEMA 5-15P |
| Net weight | 205 lb |
| Shipping weight | 249 lb |
| Warranty | 3-year parts and labor, 5-year compressor |
| Certifications | cETLus, ETL-Sanitation |
Before You Order
- Plan for a standard 115V outlet with a NEMA 5-15 receptacle.
- Check your space: the unit is 48" wide, 24-1/2" deep and 40-1/8" tall.
- An open door reaches about 17" past the front of the cabinet (41-1/2" from the back of the unit). Make sure the aisle has room for that.
- Leave the unit some room to breathe and clean the condenser often, as Atosa advises.
Atosa SBB48GGRAUS2 FAQ
What size is the Atosa SBB48GGRAUS2?
The SBB48GGRAUS2 is 48" wide, 24-1/2" deep and 40-1/8" tall. It weighs 205 lb (249 lb shipping weight).
How much does the SBB48GGRAUS2 hold?
It holds 11.5 cu. ft. on (4) epoxy coated shelves.
What temperature does the SBB48GGRAUS2 hold?
It holds 35°F to 38°F with an electronic temperature controller.
Does the SBB48GGRAUS2 lock?
Yes. Door locks are standard.
Is the SBB48GGRAUS2 black inside too?
No. The outside is black and the inside is stainless steel, which is easy to wipe clean.
What power does the SBB48GGRAUS2 need?
It runs on 115V and draws 2.3 amps. It has a standard NEMA 5-15P plug, so it plugs into a regular 115V outlet.
How often should I clean the SBB48GGRAUS2 condenser?
Atosa says to clean the condenser frequently and to leave the unit some room to breathe. A clean condenser helps the cooler hold temperature.
What warranty comes with the SBB48GGRAUS2?
3 years parts and labor and 5 years on the compressor.
Should I choose the stainless SBB48GGRAUS1 or the black SBB48GGRAUS2?
They are the same 48" wide, 24-1/2" deep cabinet with 11.5 cu. ft., the same glass doors and the same 115V power. The only difference is the outside: the SBB48GGRAUS1 is stainless steel inside and out, and the SBB48GGRAUS2 has a black exterior with a stainless interior. Pick the black SBB48GGRAUS2 when the cooler faces guests and should blend into a dark bar front.
Spec Sheet
Download the Atosa SBB48GGRAUS2 spec sheet (PDF, Rev. 07/26)
Parts Compatibility for the SBB48GGRAUS2
When your SBB48GGRAUS2 needs service, order genuine OEM Atosa parts direct from The Restaurant Warehouse. Frequently ordered items include the 83022106 mounting bracket. Visit the Atosa parts catalog or consult the Atosa parts manuals for a full component breakdown.
SBB48GGR Parts & Service
For OEM replacement parts for the SBB48GGR, see the SBB48GGR parts list, with part numbers and quantities from Atosa's exploded-view diagram. Parts lists for every model are on the Atosa parts lists index.
