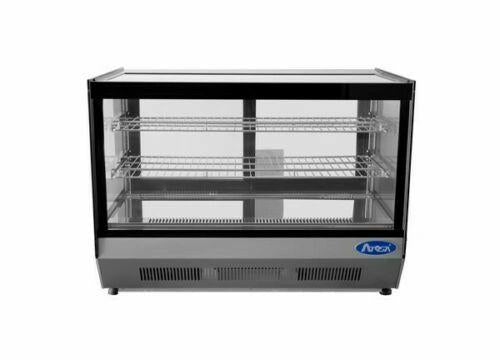

Atosa CRDS-56 36-Inch Square Glass Refrigerated Display Case, Countertop, 5.6 cu. ft.
Atosa CRDS-56 36-Inch Square Glass Refrigerated Display Case, Countertop, 5.6 cu. ft.
The Atosa CRDS-56 is a 35-1/2" wide countertop display case with square glass and two rear sliding doors. It has 5.6 cu. ft. of space, keeps food at 35°F to 38°F, and plugs into a standard 115V outlet.
At a Glance
- Size: 35-1/2" W x 22-1/8" D x 26-5/8" H
- Storage: 5.6 cu. ft., (2) stainless steel shelves
- Glass: square front glass with defog
- Access: Two rear sliding doors for staff
- Lighting: LED interior lighting
- Temperature: 35°F to 38°F, electronic controller
- Power: 115V, 2 amps, NEMA 5-15 plug
- Warranty: 3 years parts and labor, 5 years compressor
Most units ship within one business day from our warehouse with free freight to the lower 48.
A Dessert Refrigerator
This dessert refrigerator has square glass and 5.6 cu. ft. of space, the most of the four Atosa countertop display cases. Two shelves and LED lights put desserts on display.
36-Inch Square Glass Display Case for Larger Dessert Selections
The CRDS-56 offers 5.6 cu. ft. of refrigerated display space in a roughly 36-inch-wide countertop cabinet. Its square-glass profile and rear sliding doors suit bakery and café counters displaying a wider assortment of chilled desserts.
Compare Curved and Square Glass Display Cases
The 36-inch curved-glass CRDC-46 provides 4.6 cu. ft.; the CRDS-56 adds 1.0 cu. ft. with a square-glass presentation.
Built for Daily Commercial Use
- Stainless steel inside and out with black frames
- Rear mount compressor with environmentally friendly R290 refrigerant
- Electronic temperature controller
- Two (2) stainless steel shelves
- Defog feature to keep the glass clear
- Two (2) rear sliding doors
- Magnetic door gaskets
- LED interior lighting
- Leveling legs
Pick the Right Size
| Model | Glass | Width | Height | Capacity |
|---|---|---|---|---|
| CRDC-35 | Curved | 27-5/8" | 26-7/8" | 3.5 cu. ft. |
| CRDC-46 | Curved | 35-1/2" | 26-7/8" | 4.6 cu. ft. |
| CRDS-42 | Square | 27-5/8" | 26-5/8" | 4.2 cu. ft. |
| CRDS-56 (this model) | Square | 35-1/2" | 26-5/8" | 5.6 cu. ft. |
Prefer curved glass? See the Atosa CRDC-46, the same width with curved glass. Need a floor model? See the Atosa RDCS-35.
Shop all display cases or our countertop commercial refrigerators.
Specifications
| Spec | Detail |
|---|---|
| Configuration | Refrigerated display case for the countertop, square glass |
| Capacity | 5.6 cu. ft. |
| Shelves | (2) stainless steel |
| Doors | Two rear sliding doors, magnetic gaskets |
| Glass | Defog feature |
| Lighting | LED interior |
| Exterior dimensions | 35-1/2" W x 22-1/8" D x 26-5/8" H |
| Temperature range | 35°F to 38°F |
| Temperature control | Electronic |
| Compressor | 1/5 HP, rear mount |
| Refrigerant | R290 |
| Construction | Stainless steel interior and exterior, black frames |
| Feet | Leveling legs |
| Electrical | 115V / 60Hz / 1-phase, 2 amps |
| Plug | NEMA 5-15 |
| Net weight | 165 lb |
| Shipping weight | 214 lb |
| Warranty | 3-year parts and labor, 5-year compressor |
| Certifications | cETLus, ETL-Sanitation |
Before You Order
- Plan for a standard 115V outlet with a NEMA 5-15 receptacle.
- Check your counter: the unit is 35-1/2" wide, 22-1/8" deep and 26-5/8" tall.
- Staff load it from the back through the sliding doors, so leave room behind it to work.
- Leave the unit some room to breathe and clean the condenser often, as Atosa advises.
Atosa CRDS-56 FAQ
What size is the Atosa CRDS-56?
The CRDS-56 is 35-1/2" wide, 22-1/8" deep and 26-5/8" tall. It weighs 165 lb (214 lb shipping weight).
How much does the CRDS-56 hold?
It has 5.6 cu. ft. of space with (2) stainless steel shelves.
What temperature does the CRDS-56 hold?
It holds 35°F to 38°F with an electronic temperature controller.
Does the CRDS-56 glass fog up?
It has a defog feature to help keep the glass clear.
How do staff load the CRDS-56?
From the back. It has two rear sliding doors.
What is the difference between the CRDS-56 and the CRDC-46?
They are the same width. The CRDS-56 has square glass and holds 5.6 cu. ft. The CRDC-46 has curved glass and holds 4.6 cu. ft.
What power does the CRDS-56 need?
It runs on 115V and draws 2 amps. It has a NEMA 5-15 plug.
How often should I clean the CRDS-56 condenser?
Atosa says to clean the condenser frequently to give the unit more fresh air, and to leave the unit some room to breathe.
What warranty comes with the CRDS-56?
3 years parts and labor and 5 years on the compressor.
Spec Sheet
Download the Atosa CRDS-56 spec sheet (PDF, Rev. 07/26)
Genuine Replacement Parts for the CRDS-56
Keep your CRDS-56 display case running like new with genuine OEM Atosa service parts. Common wear components we stock include the W0301106 fan motor, the W0305134 power cord, the W0411206 drain pan, the W0204101 dry filter, and the W0604951 logo/badge. Browse the complete Atosa parts catalog or reference the Atosa parts manuals for compatibility.
CRDS-56 Parts & Service
For OEM replacement parts for the CRDS-56, see the CRDS-56 parts list, with part numbers and quantities from Atosa's exploded-view diagram. Parts lists for every model are on the Atosa parts lists index.
