Atosa AWC0810TF-IL/IR 8' x 10' Walk-In Cooler with Interior Ramp - 1.5 HP Top-Mount Refrigeration

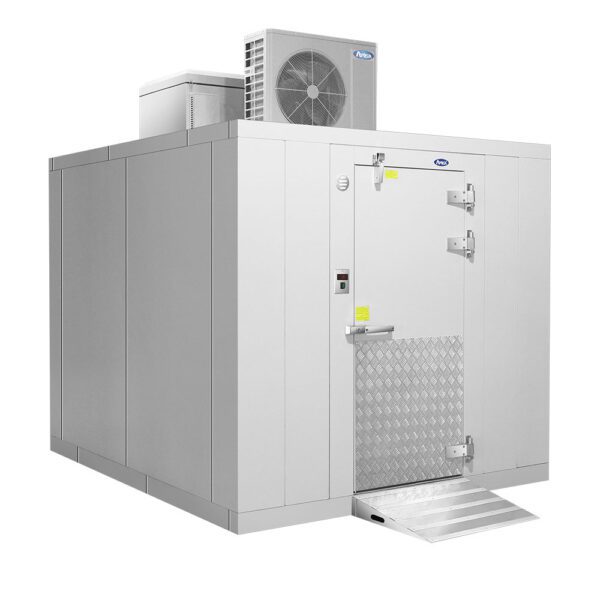

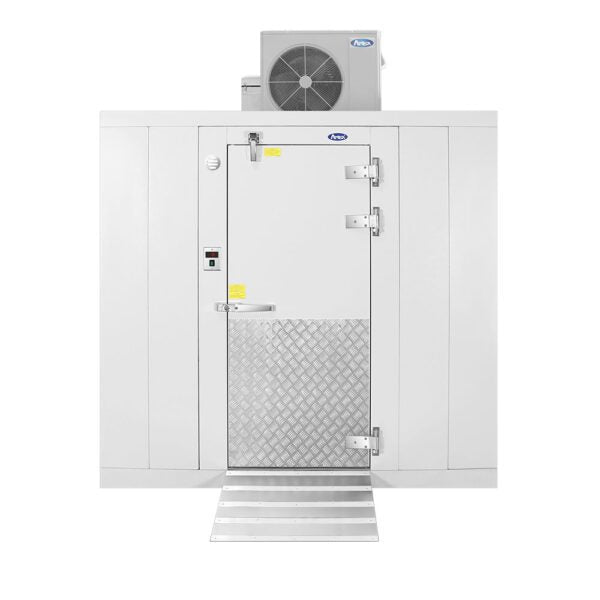

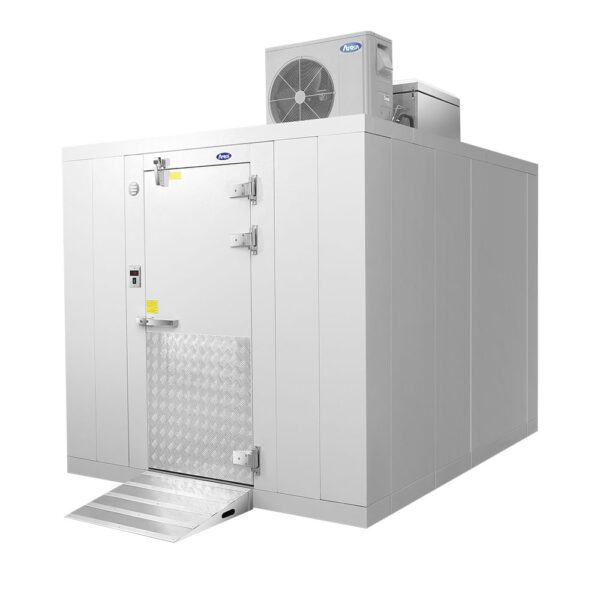

Atosa AWC0810TF-IL/IR 8' x 10' Walk-In Cooler with Interior Ramp — 1.5 HP Top-Mount Refrigeration
The Atosa AWC0810TF-IL/IR is an 8' x 10' indoor walk-in cooler with an interior ramp, built for high-volume restaurants, grocery stores, institutional kitchens, and commissaries where there's no room for a ramp outside the door. It holds 35°F to 38°F and arrives as a complete package: 4" foamed-in-place panels rated R-29, a reinforced floor, a 36" door with heated frames and diamond tread kick plates, and a top-mount drop-in refrigeration system with a 1.5 HP condensing unit and evaporator included.
Because the ramp sits inside the box, nothing projects into your aisle or hallway, which makes this model a good fit for tight back-of-house corridors. Cam-lock panels make installation straightforward, and the drop-in refrigeration sits on top of the box, so there's no separate condensing unit to mount or line set to run.
Request a Quote
The AWC0810TF-IL/IR is available with a left-hinged (IL) or right-hinged (IR) door. Request a quote and we'll confirm the hinge side, delivery, and any options your space needs. Call or text Sean at 206-419-5801 for help planning your walk-in.
Built for High-Volume Refrigerated Storage in Tight Spaces
- Restaurants with narrow corridors — no exterior ramp blocking the walkway
- Full-service and multi-unit restaurants — produce, proteins, dairy, and prepped ingredients by the case
- Grocery and convenience stores — backstock for beverages, dairy, and produce
- Schools, hospitals, and institutions — large-volume refrigerated inventory
- Commissary and catering kitchens — shared refrigerated storage for multiple operations
Construction
The box uses 4" thick foamed-in-place panels with cam locks and an R-29 insulation rating for a tight, efficient seal. The interior and exterior are white, and the reinforced floor is standard. The overall height with the condenser installed is 117" (9'9"), and Atosa recommends an 11' ceiling for airflow around the condenser.

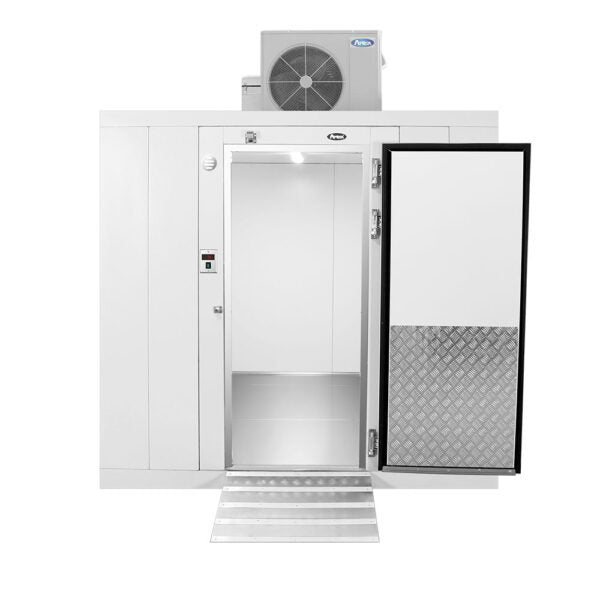

Door and Hardware
- 36" door with heated frames to prevent condensation around the door
- Diamond tread kick plates to protect the door from carts and boots
- 3 spring-loaded heavy-duty Kason hinges
- Heavy-duty Kason door closer so the door closes on its own
- Heavy-duty Kason handle with lock and an inside safety release

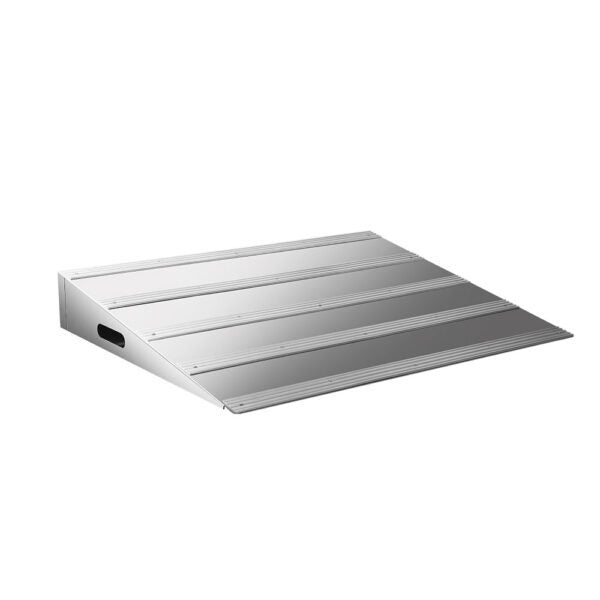

- Interior ramp for carts and hand trucks, without taking up floor space outside the box
Refrigeration

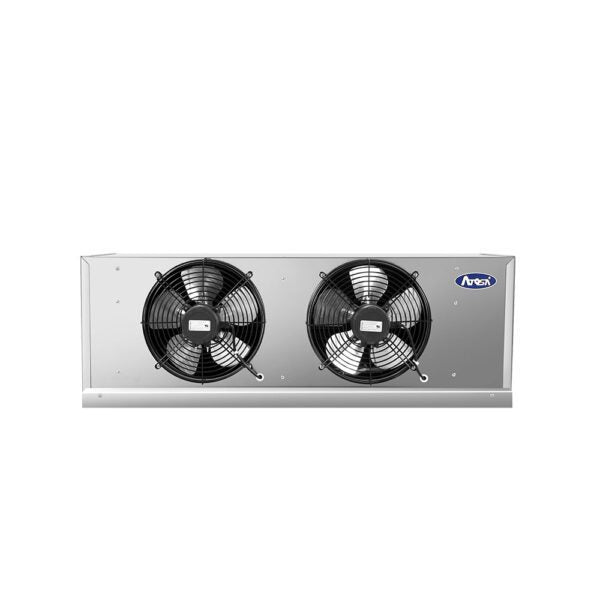

The top-mount drop-in refrigeration system includes a 1.5 HP condensing unit and evaporator, runs on R404A refrigerant, and is designed for low noise. It holds 35°F to 38°F, which keeps refrigerated food safely below the 41°F FDA Food Code limit. A digital LED display shows the box temperature at a glance, and a 48" ceiling-mount LED light lights the interior.
Specifications
| Spec | Detail |
|---|---|
| Model | AWC0810TF-IL/IR |
| Type | Indoor walk-in cooler with floor |
| Nominal size | 8' x 10' |
| Exterior dimensions | 96"W x 120"L x 117"H (with condenser) |
| Recommended ceiling height | 11' |
| Temperature range | 35°F to 38°F |
| Panels | 4" foamed-in-place with cam locks, R-29 |
| Finish | White interior and exterior |
| Floor | Reinforced floor, standard |
| Door | 36" with heated frames and diamond tread kick plates |
| Door hinge | Left (IL) or right (IR), confirmed on quote |
| Hardware | 3 Kason spring-loaded hinges, Kason closer, Kason locking handle with inside safety release |
| Ramp | Interior |
| Lighting | 48" ceiling-mount LED |
| Display | Digital LED |
| Refrigeration | Top-mount drop-in, condensing unit and evaporator included |
| Compressor | 1.5 HP |
| Refrigerant | R404A |
| Electrical | 208–240V, 60Hz, 1-phase |
| Rated current | 12 amps |
| Warranty | 10-year panel, 5-year refrigeration, 1-year hardware |
| Certifications | cETLus, ETL Sanitation |
Installation
The AWC0810TF-IL/IR is for indoor installation only. Plan for a dedicated 208–240V single-phase circuit sized by your electrician, an overall height of 117" with the condenser installed, and an 11' ceiling so the condenser has room to breathe. Keep the condenser clean for the best efficiency. Installation should be handled by a qualified refrigeration and electrical contractor.
Other Sizes and Options
Have room for a ramp outside the door? See the AWC0810TF-EL/ER with an exterior ramp. The Atosa interior-ramp walk-in cooler line also comes in 6' x 8' and 8' x 8' sizes. Need frozen storage in the same footprint? See the AWF0810TF-IL/IR walk-in freezer. Browse all walk-in coolers and freezers, or spread the cost with restaurant equipment financing.
Frequently Asked Questions
What temperature does the AWC0810TF-IL/IR hold?
It maintains 35°F to 38°F, which keeps refrigerated food safely below the 41°F FDA Food Code limit.
What is the difference between the IL and IR?
IL has a left-hinged door and IR has a right-hinged door. Everything else is the same. We confirm the hinge side when you request a quote.
What is the difference between the AWC0810TF-IL/IR and the AWC0810TF-EL/ER?
Both are 8' x 10' walk-in coolers with the same box and refrigeration. The IL/IR has an interior ramp inside the box, so nothing projects outside the door. The EL/ER has an exterior ramp outside the door.
Is the refrigeration system included?
Yes. A top-mount drop-in system with a 1.5 HP condensing unit and evaporator is included.
What electrical service does it need?
208–240V, 60Hz, single phase, with a 12 amp rated current. Have your electrician size the circuit.
How much ceiling height do I need?
The overall height with the condenser installed is 117". Atosa recommends an 11' ceiling for airflow around the condenser.
Does it come with a floor?
Yes. A reinforced floor is standard.
Can it be installed outdoors?
No. The AWC0810TF-IL/IR is an indoor model.
Is there a matching walk-in freezer?
Yes. The AWF0810TF-IL/IR is the 8' x 10' interior-ramp walk-in freezer version, holding -8°F to 0°F.
What warranty comes with it?
10 years on panels, 5 years on refrigeration, and 1 year on hardware.
Is it certified for commercial use?
Yes. It's cETLus and ETL Sanitation listed.
How do I order?
Request a quote on this page or call or text Sean at 206-419-5801. We'll confirm the hinge side, delivery, and installation needs.
